High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery

Product Categories

HEFEI ECOLITE ENERGY CO., LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: High Density 1280Wh HYLNLFP 128V 100Ah LiFePO4 Battery
Brand: Ecolite
Price: 1 USD

Brand Name : Ecolite

Model Number : 12.8V100Ah

Place of Origin : China

MOQ : 1000pcs

Price : Inquiry

Payment Terms : L/C, T/T

Supply Ability : 5000 units/month

Delivery Time : 5-8 work days

Packaging Details : Carton Pallet Container

Nominal Voltage : 12.8V

Rated Capacity : 100Ah

Energy : 1280Wh

Resistance : ≤65mΩ

Efficiency : 0.99

Cycle Life : ＞2000cycle @1C，80% DOD

Self Discharge : 2% Per Month

Max.Modules in Series/Parallel : 4S/2P

Contact Now

Ecolite Lithium Iron Phosphate Battery 12.8V100Ah LiFePO4

Mechanical Parameters
Dimension(L×W×H)	329×173×214mm(13.0×6.8×8.5'')
Weight	11.5kg(25.35bs)
Terminal Type	M8
Battery Housing	ABS,LG121
Housing Protection	IP56
Cell Type-Chemistry	LiFePO4Cell
SOC Display(Optional)	/
Discharge Parameters
Continuous Discharge Current	100A
Pulse Discharge Current	160A(＜30s)
Recommended Volt,Disconnect	10V
BMS Discharge Cut-off Voltage	8.8V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us
Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.4~14.8V
Recommended Float Voltage	13.8V
Recommended Charge Current	30A
Maximum Charge Current	100A
BMS Charge Cut-off Voltage	15V
Temperature Parameters
Discharge Temperature	-20 to 60 ℃ (-4 to 140 ℉ )
Charge Temperature	0 to 60 ℃ (32 to 140 ℉ )
Storage Temperature	-40 to 70 ℃ (-40 to 158 ℉ )
BMS High Temperature Cut-off	78 ℃ (172.4 ℉ )

High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery

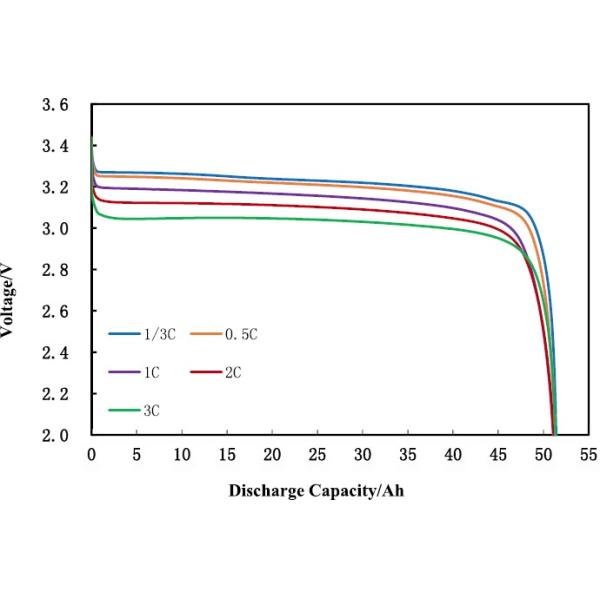

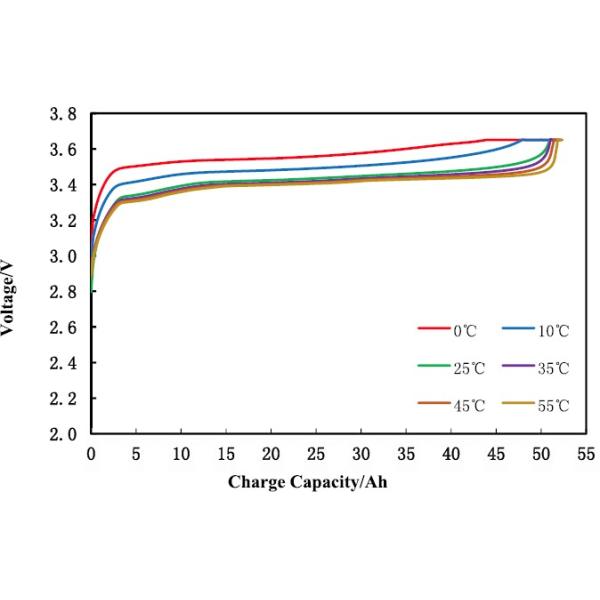

Cell Performance Charateristics

High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery

Battery Dimension

High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery

NOTE:Do not Mix With Sealed Lead Acid Batteries When Recycling. See Ecolite User's Manual for Proper Operation.
